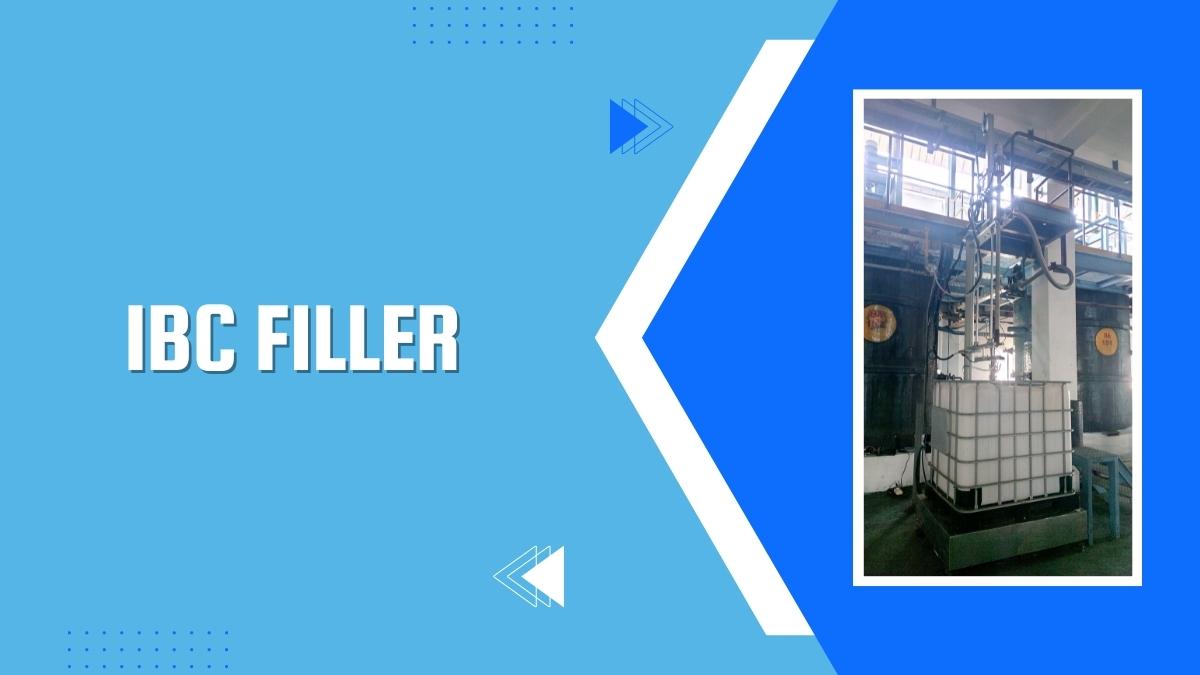

Automatic IBC Filler

This is a fully automatic IBC filling system. No operator is necessary. Each IBC conveys into the fill station then stops, signalling the lance to enter the container and automatically tare the load.

This system allows several pallet loads of empty IBCs to accumulate prior to the filling station. A powered roller conveyor is on the scale and another is after the fill station for cap & label application. There are additional conveyors after to accumulate full loads.

Description of Operation

  • A forklift drops off empty IBCs to the infeed conveyor to accumulate
  • When a full load is discharged, a new load conveys to the fill station automatically
  • The lance travels into the IBC to start the fill cycle
  • Near the top, the machine cycles to dribble speed to top off the IBC
  • This machine functions as an automatic filler as long as the IBC size and bung opening are consistent for each fill cycle

General Specifications

  • Automatic abort if lance is not aligned with bung opening
  • Two inch diameter product valves for faster flow rates
  • Quick change 2" diameter lance
  • Wetted parts are 304 stainless steel with Teflon seats & seals
  • 1500 Kg capacity scale base with four load cells
  • Fully welded structural steel frame
  • Air operated drip collector and Teflon wiper ring
  • Built in fume hood for vapor collection
  • PLC based weight controller & load cells
  • Dust proof standard enclosure, others optional
  • RS-232 port for optional data acquisition and printer connection
  • Operator troubleshooting interface with prompts
