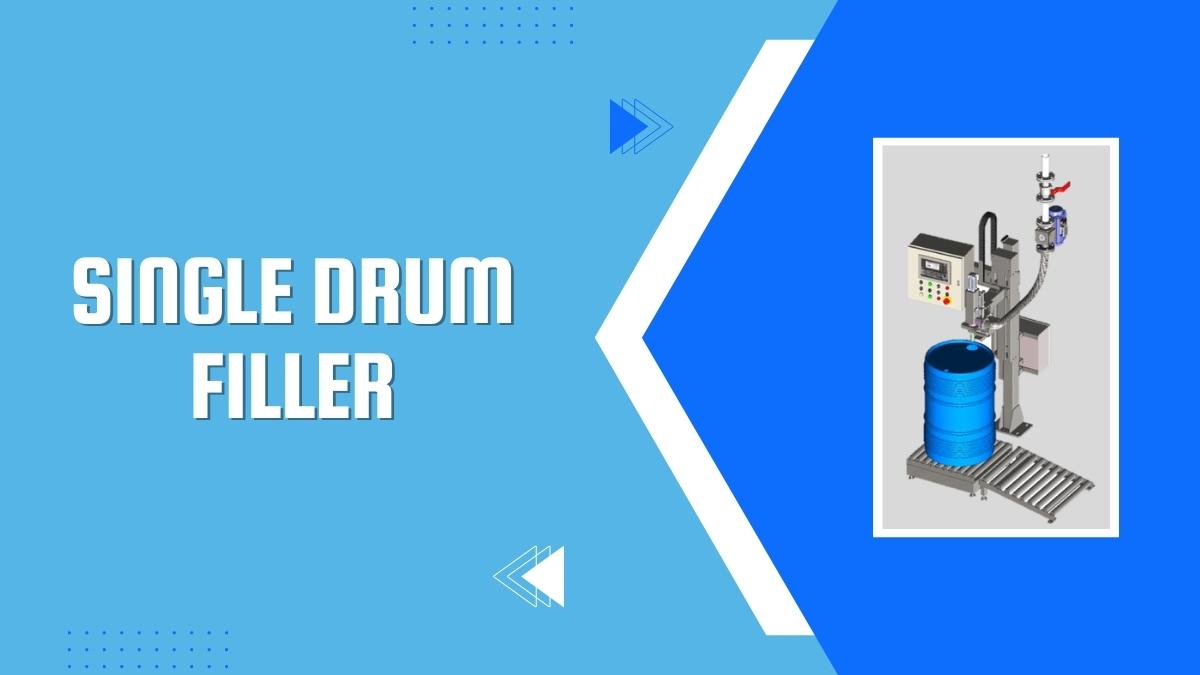

Single Drum Filler


Features

  • This is a semi-automatic, sub-surface filler
  • This system requires empty drums to accumulate prior to the filling station
  • Bungs are removed and left on top of each drum, prior to filling
  • A scale mounted powered conveyor drives each drum on & off the fill station
  • The operator will replace the bung and place a cap or label while the next drum is filling
  • Full drums will convey to a palletizer, accumulate in-line or be picked-up by fork truck

General Specifications - DF-5510

  • Subsurface or top fill,2 speed for greater accuracy
  • Automatic abort if lance is not aligned with bung opening
  • Two inch diameter product valves for faster flow rates
  • Quick change 2" diameter lance
  • Wetted parts are 304 stainless steel with Teflon seats & seals
  • 300 Kg capacity scale base
  • Fully welded structural steel frame
  • Air operated drip collector and Teflon wiper ring
  • Hood for fume collection
  • PLC based weight controller & load cell
  • Dust proof standard enclosure, others optional
  • RS-232 port for optional data acquisition and printer connection
  • Alpha - Numeric operator keyboard
  • Operator troubleshooting interface with prompts

Options & Accessories - DF-5510

  • Infeed & Outfeed conveyors
  • Additional lance carriage
  • Spare lance assembly
  • Flame proof enclosures
  • Automatic fume booth
  • Nitrogen container purging system
